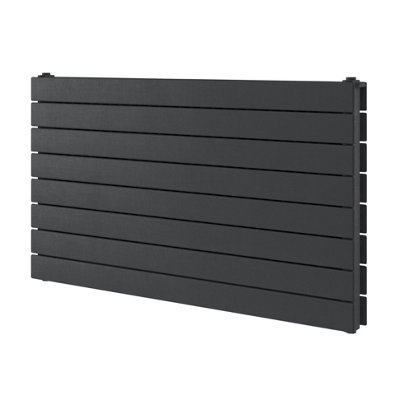

Steel construction with high quality pre-treatment and powder-coated finish. Easy to install. Wall fixings, plug and vent included. Connection size: 1/2". Heat output calculated at Delta T50°C. Pressure tested to 5.2 bar, max working pressure 4 bar. Max. working temperature : 120°C. Manufactured and tested to EN-442Dimensions are height by width.Stylish designer Rradiator with modern panel design. 10 year manufacturer's guarantee (T&Cs Apply). Suitable for hot water central heating systems. Projection from wall: 71 mm and wall to centre: 44 mm

Brand Name	Ximax
Colour	White
Material	Steel
Manufacturer Model No	TPH4451500W
Certifications Met	Manufactured and tested to EN-442
Weight (Kg)	15.41KG
BTU	2515
Inlet Connection	1/2"
Max. Hot Water Temp	120°C
Warranty (years)	10 years
Range Name	Oxford
Depth (mm)	63mm
Width (mm)	1500mm
Pack contents	Radiator, fixings, blank and air plug
Finish	Gloss
Min. pressure (bar)	0.5 bar
Pipe Centres	1500mm
Max. pressure (bar)	4
Coating	Powder Coated
Radiator Style	Flat
BTU range	2001-3000
Fitted Depth	71mm
Radiator Profile	Single Panel
Number of Sections	6
Delta T	Delta T50°C
Radiator Orientation	Horizontal
Projection from wall	71 mm
wall to centre	44 mm
